Fujinon XF56mm f/1.7 Patent Spotted (plus XF18mmF1.4 with Slightly Different Optical System)
In 11+ years of sharing patents on FujiRumors, I have NEVER seen a single patent being shared that later on materialized into a real product.
This is why I warn you again: the patents you’ll read about today will remain on paper forever.
- Fujinon XF18mm f/1.4 with slightly different optical system than the one we already have on the market
- Fujinon XF56mm f/1.7
And no, the lens you see in the image above is not from the patent, but from a wildlife lens survey/article we shared in the past, were a reader made a mock-up of the lens.
- Fujinon Wildlife Photography Lenses – POLL
- Fujifilm Lenses for Wildlife Photography: Fujinon XF 400mmF4 and What Else?
via asobinet
Patent Details

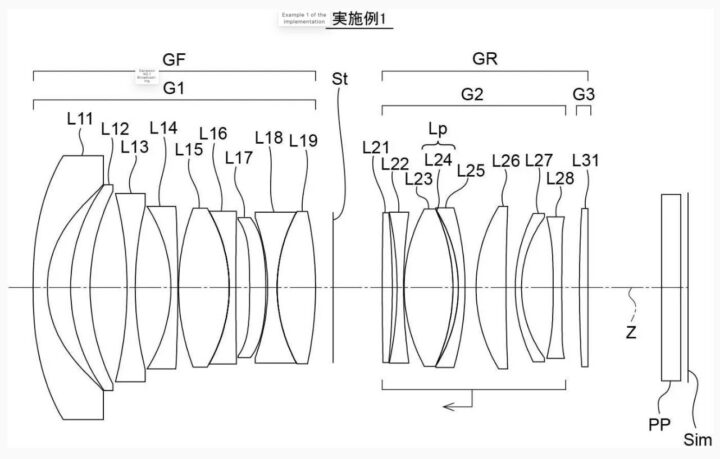

Example 1
- Focal length: 18.37
- F value: 1.44
- Half angle of view: 75.0

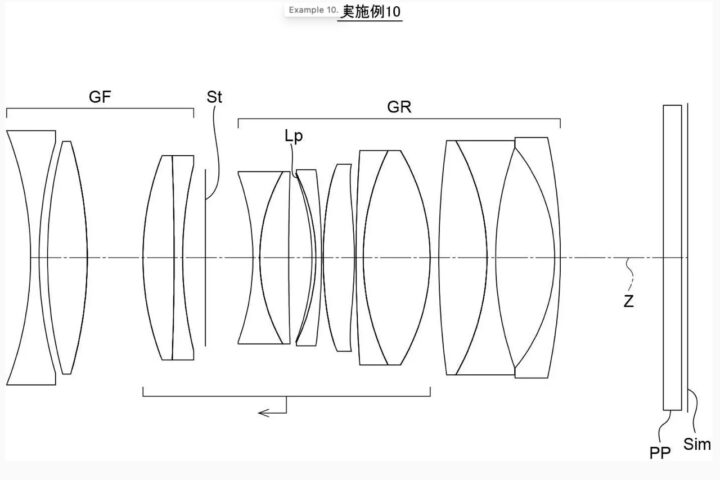

Example 10
- Focal length: 56.43
- F value: 1.75
- Angle of view: 53.5
Summary
- [Public number] P2023105690
- [Release date] 2023-07-31
- [Name of invention] Imaging lens and imaging device
- [Applying date] 2022-01-19
- [Apprer]
[Identification number] 306037311
[Name or name] Fujifilm Co., Ltd. - [Issue] We provide an imaging lens that is small and lightweight, has a small F-number, suppresses chromatic aberration, has good optical performance, and an imaging device with this imaging lens.
- [Background technology] [0002] Conventionally, the one described in the patent document 1 below is known as an imaging lens that can be used for imaging devices such as digital cameras.
- [0004] Although it is small and lightweight, an imaging lens with a small F number, suppressed chromatic aberration, and good optical performance is requested. These demands are increasing year by year.
